Profile 7176/16725 EN-AW 6005 T6 6000mm - 6000 mm

EN AW-6005A Profile 7176/16725 EN-AW 6005 T6 6000mm - 6000 mm

No surface treatment
Material id:
1008875
Length
6000 mm
Surface
No surface treatment
Profile name
Profile 7176/16725 EN-AW 6005 T6 6000mm
Weight
≈ 1.95 kg/m

Download PDF

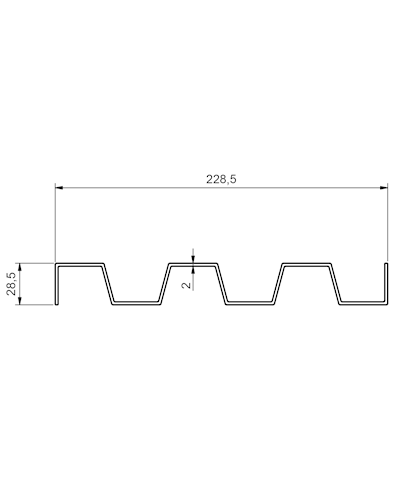

Download drawings in PDF
Stock
Stock material

EN AW-6005A

It is an alloy with an average corrosion resistance and good for welding. The alloy strength is higher than the one of EN AW-6063.

We are not liable for items out of stock. The specified weight is theoretical. Please contact us if you have any further enquiries.

Technical Specifications

Alloys

Density Si Fe Cu Mn Mg Cr Zn Ti Mn+Cr Other
Name g/cm3 Min Max Max Max Max Min Max Max Max Max Min Max Max
EN AW-6005A 2.71 Al, Aluminium 0.5 0.9 0.35 0.3 0.5 0.4 0.7 0.3 0.2 0.1 0.12 0.5 0.15

Aluminium Properties

Thermal conductivity Coefficient of thermal expansion Melting point Elastic modulus Electrical conductivity
Alloy Temper W/m*K µm/(m*K) min °C KN/mm2 %IACS
EN AW-6005A T1 23.3 605 655 69
EN AW-6005A T4 23.3 605 655 69
EN AW-6005A T5 23.3 605 655 69
EN AW-6005A T6 193 23.3 605 655 69 49.5
